VTS

back to product

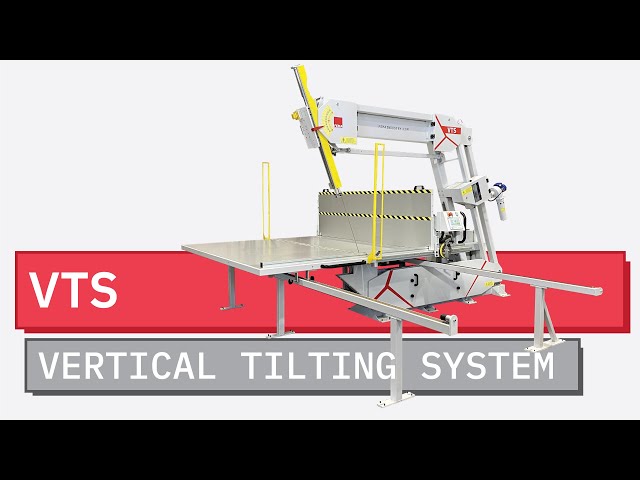

VTS is a tilting blade vertical cutter. The blade angle is adjustable up to ±60° semi-automatically. Equipped with a twisted bandknife, it can cut polyurethane blocks in both directions. The fence is manually adjustable, and it features a scale and a cutting selector, allowing a positioning accurate to the millimeter.

require an offer

Application

Automotive
Automotive
Packaging
Packaging
Insulation
Insulation
Preparation
Preparation
Upholstered Furniture
Upholstered Furniture
Multi Purpose
Multi Purpose

Datasheet

Cutting tool
Smooth/toothed/set bandknife
Table cutting area
1200 x 2350 mm ! 48" x 93" (sx/standard) 1800-3000 x 2350 mm | 71"-118" x 93" (sx/optional) 1200 x 2350 mm | 48"x 93" (dx/standard) 2350 x 1800 mm | 93"x71" (dx/optional)
Cutting height
1300 mm | 51"
Material
PU flexible foam, PU rigid foam, HR foam,CMHR foam, latex, visco-elastic foam, rebond foam, melamine, Basotect®, EVA, PE , PIR, reticulated foam, felt, non-woven material, cotton wool, honeycomb, cellular rubber, laminated material, fabrics, rock wool and glass wool, bubble wrap, cardboard.
Power
3PH+N+PE(400V/230V),50/60Hz+6KW,16A
See all technical data
Manual sharpening system
Standard
Manual tensioning system
Standard
Tilting fence
Standard
Inclination ± 45° - 60°
Standard
Motorized blade guide
Standard
See all technical data
Air blowing system on loading table
Optional
Automatic cleaning system with silicon spray
Optional
PLC programmed by FEMA
Standard
NEXUM
Optional
Layout
More info

Related Tools

Ground band knife
Toothed band knife
