MS

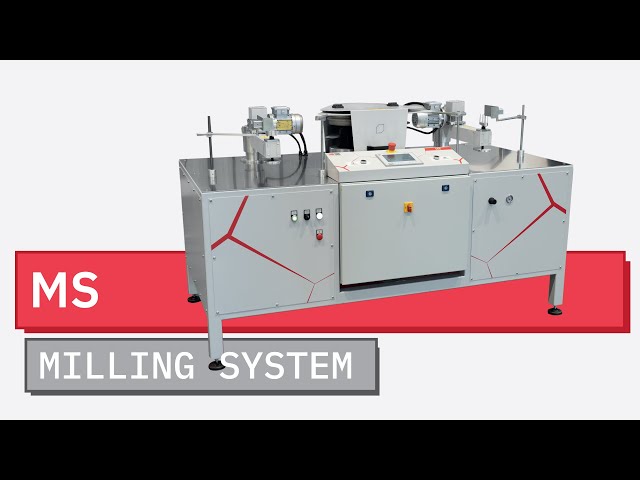

This Milling System creates PU sponges of varying sizes and shape. Using the milling device in the center, this system shapes the sponge into circles, ovals or other, according to the shape and mill used. It features two working stations and also a vacuum system for removing all residues.

require an offer

Application

Automotive
Automotive
Packaging
Packaging
Houseware
Houseware
Cleaning
Cleaning
Insulation
Insulation
Multi Purpose
Multi Purpose

Datasheet

MS
Milling machine
Cutting tool
Milling heads
Material
PU flexible foam, laminated material, polyester fiber
Power
3PH+N+PE(400V/230V),50/60Hz+5KW,16A
Air pressure (bar)
6 / 8
N° 2 working milling stations
Standard
Dust vacuum system
Standard
Pneumatic piece positioning
Standard
Adjustable shaping speed
Standard
N° 2 storage boxes
Optional
Indipendent control for single station
Optional
PLC programmed by Fema
Standard
Milling diameter (max)
245 mm | 10" (standard)
Layout
More info
