Michelangelo

back to product

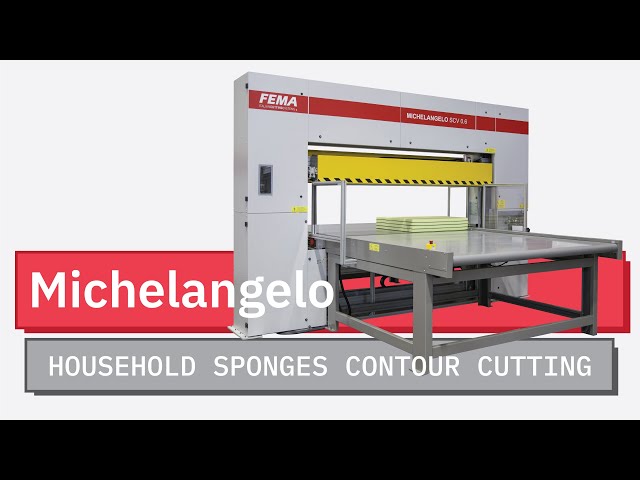

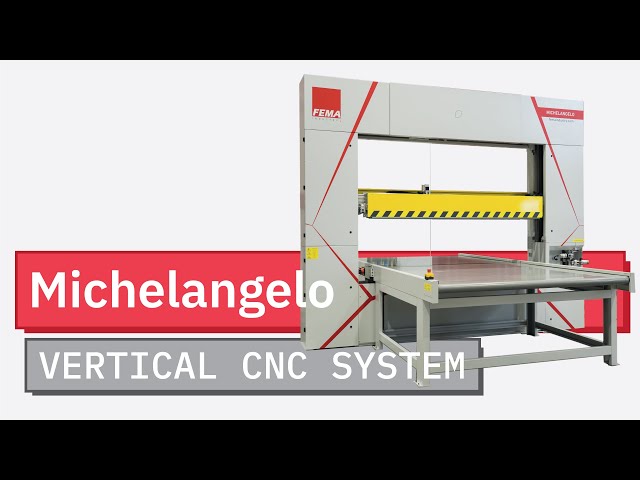

MICHELANGELO is a CNC vertical cutting machine. It features great accuracy, a wide cutting area and vertiginous speed. It’s available in two models with two different working heights. As all our CNCs, the system is controlled by the LF-2000 software, and by the newest LF-2 nesting utility.

require an offer

Application

Bedding
Bedding
Automotive
Automotive
Packaging
Packaging
Houseware
Houseware
Furniture
Furniture
Soundproofing
Soundproofing
Cleaning
Cleaning
Preparation
Preparation
Sofa
Sofa
Upholstered Furniture
Upholstered Furniture
Multi Purpose
Multi Purpose

Datasheet

0.6
Cutting height 600 mm
1.3
Cutting height 1300 mm
Cutting tool
Smooth/toothed band knife
Table cutting area
2500x2200mm | 99 x 87"
Cutting height
600 / 1300 mm | 24/51"
Cutting speed max
65 m/min | 2559 ft/min
Material
PU flexible foam, HR foam,CMHR foam, latex, visco-elastic foam, lightweight rebond foam, melamine, Basotect®, phenolic resin foam,EVA, PE , reticulated foam , rebond foam, felt, non-woven material, cotton wool, cellular rubber, laminated material, fabrics.
See all technical data
Automatic sharpening system, motorized with dust vacuum
Standard
Semi-automatic hold-down device
Standard
High-friction conveyorized tables
Standard
Air blowing system for blade cleaning and cooling
Standard
Blade tensioning system, pneumatic
Standard
See all technical data
Loading conveyor
Optional
Unloading conveyor
Optional

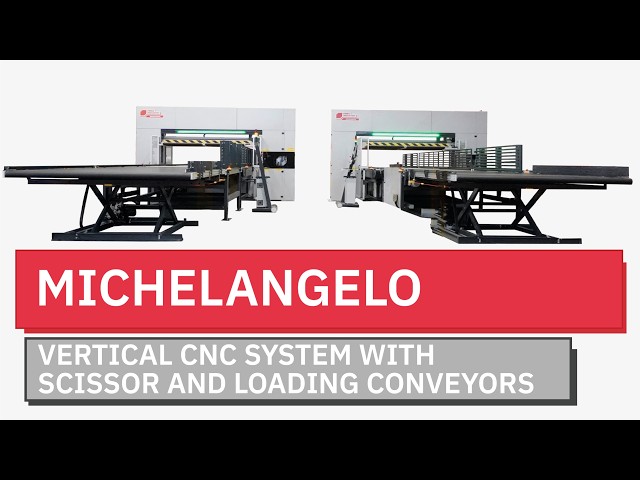

Scissor conveyor
Optional
Height direction system
Optional

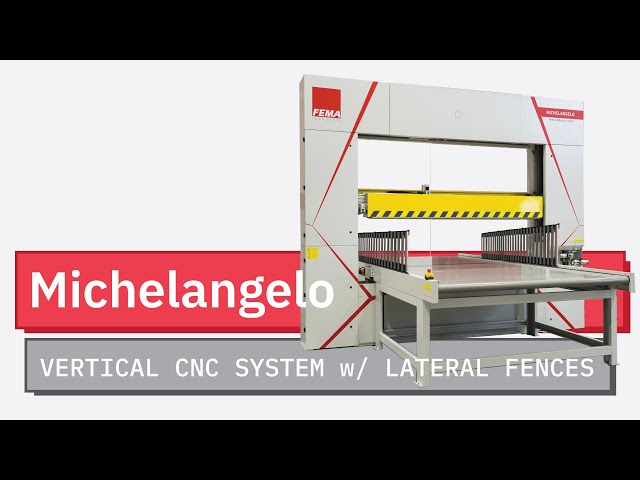

Lateral fences
Optional
See all technical data
LF2000
Standard
LF2 NESTING
Optional
NEXUM
Optional
Layout
More info

Related Tools

Contour knife

Circulating band knife, toothed on one side, sharpened on one side
