Giotto X

back to product

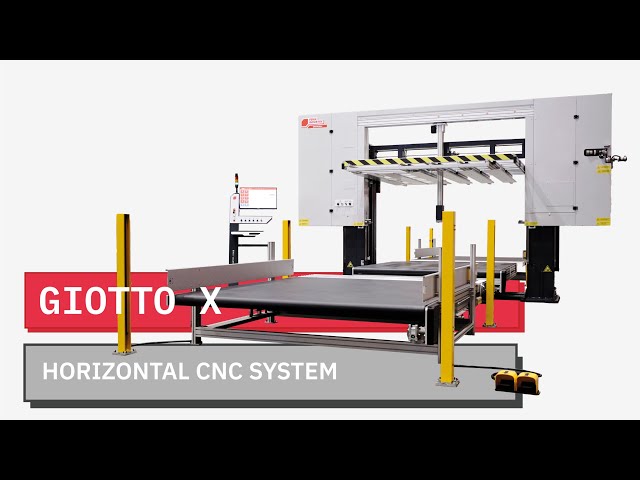

GIOTTO X, available in two models, is the best Fema Industry has to offer concerning accuracy and versatility. This top-notch CNC system can cut expanded resins, semirigid and flexible polyurethane at top speed. Its revolutionary architecture and innovative components ensure the best cutting quality along with maximum processing speed on all densities and sizes. Furthermore, the system is controlled by the LF-2000 software, and by the newest LF-2 nesting utility.

require an offer

Application

Bedding

Automotive

Medical

Packaging

Houseware

Furniture

Soundproofing

Insulation

Preparation

Sofa

Upholstered Furniture

Multi Purpose

Datasheet

Models
Technical data
Standard features
Optionals features
Software

1.0

Horizontal shaper with circulating band knife system

1.1

Horizontal shaper with circulating and oscillating band knife systems

Cutting tool

Smooth/toothed band knife

Table cutting area

2320x2320 mm | 92 x 92" (standard) 2600 - 3000 mm | 103" - 118" (optional)

Cutting height

1350 mm | 53" (standard) 1500 mm | 59” (optional)

Cutting speed max

40 m/min | 1575 ft/min (standard) 60 m/min | 197 ft/min (optional)

Material

PU flexible foam, HR foam,CMHR foam, latex, visco-elastic foam, lightweight rebond foam, melamine, Basotect®, EVA, PE, reticulated foam.

See all technical data

Automatic turning table

Standard

Conveyorized table

Standard

Automatic sharpening system, motorized with dust vacuum

Standard

Central support, 4 positions

Standard

Automatic hold-down device

Standard

See all technical data

Loading conveyor

Optional

Unloading conveyor

Optional

Size detection system on board

Optional

Oscillating system

Optional

Scissor conveyor

Optional

See all technical data

LF 2000

Standard

LF2 NESTING

Optional

NEXUM

Optional
