Software

Cimage

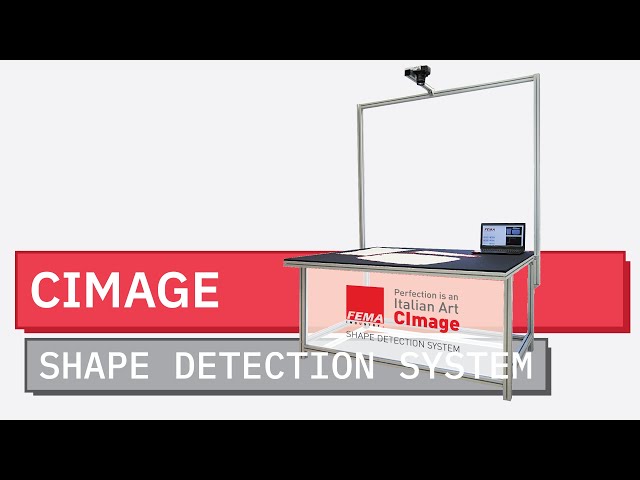

CIMAGE is an auxiliary system which can capture pictures of shapes, digitalize them, and convert them to a dxf format, ready to be processed by our cutting systems. This innovative solution helps minimize the use of CAD software to draw, relying on the digital acquisition and conversion instead.

require an offer

Application

Bedding
Bedding
Automotive
Automotive
Medical
Medical
Packaging
Packaging
Sofa
Sofa
Upholstered Furniture
Upholstered Furniture
Multi Purpose
Multi Purpose

Datasheet

Standard
Table structure + camera
Wall
Black panel + camera
Curtain
Portable black curtain + camera
Table detection dimension (mm)
2400x1600x1200
Controlled by
Fema Industry CIMAGE Software
Hole detection
Serial
Notch detection
Serial
Multi-shape conversion
Serial
DXF creation
Serial
