SVS

back to product

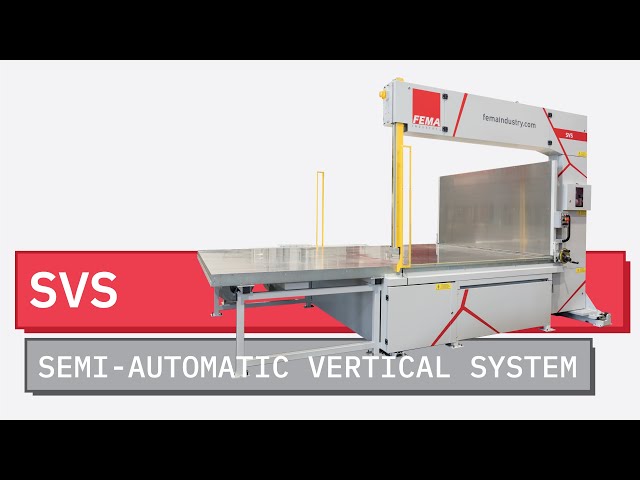

SVS is a semi-automatic vertical cutter. It can cut slabs and sheets of any thickness quickly and accurately. The arc advancement is commanded electrically, whilst the fence is moved and adjusted manually, with the aid of a cutting selector. It’s built to cut perfectly in two directions, with minimal effort by the user.

require an offer

Application

Bedding
Bedding
Packaging
Packaging
Insulation
Insulation
Preparation
Preparation
Multi Purpose
Multi Purpose

Datasheet

Cutting tool
Smooth/toothed/set bandknife
Table cutting area (mm)
2200x2200
Cutting height (mm)
1300
Cutting speed max (m/min)
16
Material
PU flexible foam, PU rigid foam, HR foam,CMHR foam, latex, visco-elastic foam, rebond foam, melamine, Basotect®, EVA, PE , PIR, reticulated foam, felt, non-woven material, cotton wool, honeycomb, cellular rubber, laminated material, fabrics, rock wool and glass wool, bubble wrap, cardboard.
See all technical data
Manual sharpening system, motorized with dust vacuum
Serial
Adjustable blade guide
Serial
Manual fence
Serial
Button panel for manual movement
Serial
Blade tensioning system, manual
Serial
See all technical data
Air blowing system on tables
Optional
Motorized fence and control panel equipped with PLC and joystick
Optional
V-structure
Optional
Customizable cutting area
Optional
More info
