SL

back to product

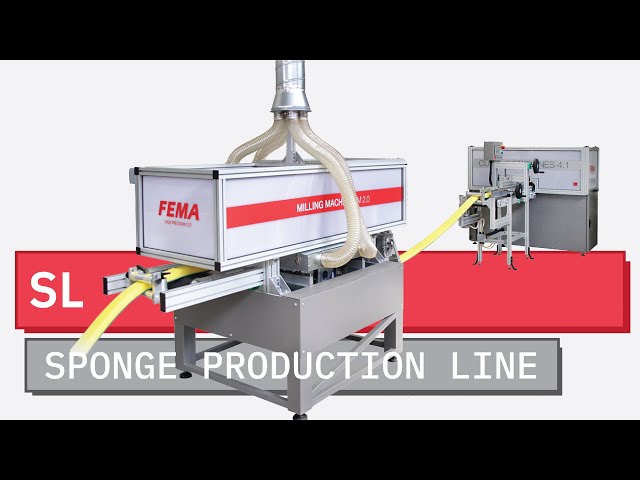

Our SL is the essential line you need to cut sponges starting from stripes.

The cutting station guarantees high productivity operating with four discs simultaneously, for maximum efficiency.

This fast and reliable system can be furtherly equipped with a wide array of optionals. Build your line exactly as you want it to be!

require an offer

Application

Medical
Medical
Packaging
Packaging
Houseware
Houseware
Cleaning
Cleaning
Multi Purpose
Multi Purpose

Datasheet

Sponge width
60 mm | 3 inches / 180 mm | 7 inches
Sponge height
22 mm | 1 inches / 60 mm | 3 inches
PRODUCTION (PCS/H)
5.000
Material
PU flexible foam, laminated materials, polyester fiber
Power
3xP(400V/230V)+N+E, 50/60 Hz, 6.3KW
See all technical data
CUTTING STATION, SINGLE
This cutting station cuts out single sponges starting from a continuous stripe. It's equipped with four discs operating in synergy.
HMI TOUCHSCREEN 7"
Serial
Unwinding
Serial
AUTOMATIC SHARPENING SYSTEM, MOTORIZED WITH DUST VACUUM
Serial
MILLING STATION with vacuum
The milling station creates the nails-saver, the groove in the lateral part of the sponges. It conveys and acts on the sponges entire stripe at high speed. It features a vacuum system which removes the dust created in this process. This station supports a minimum sponge thickness of 48 mm
PRINTING STATION
The printing station operates on the sponge by printing the company logo in it. Fast in processing and accurate in execution
FLIP CONVEYOR
This conveyor is able to flip the sponges over, readying them for different procedures and modules such as the final packaging
ROTATION CONVEYOR
This conveyor rotates the sponges by 90°, preparing them for other working processes or for packaging
