HDS

back to product

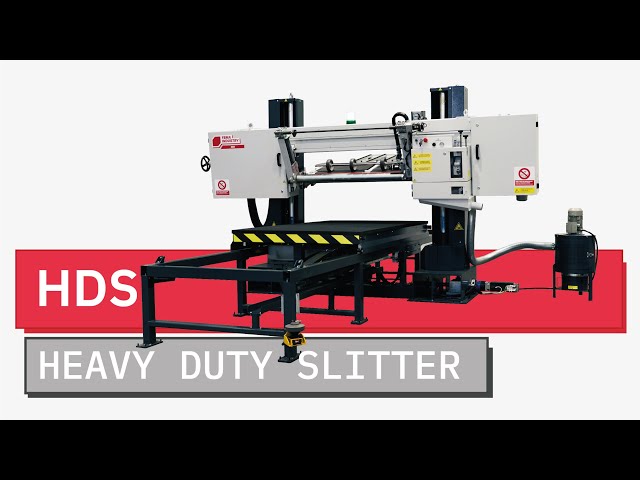

HDS is a heavy-duty horizontal machine equipped with a structural blade guide, ensuring ultra-precise cuts. Perfect for processing conventional polyurethane as well as rubbery, semi-rigid, and closed-cell materials.

require an offer

Application

Bedding
Bedding
Packaging
Packaging
Insulation
Insulation
Preparation
Preparation
Upholstered Furniture
Upholstered Furniture
Multi Purpose
Multi Purpose

Datasheet

1.4
Table width 1400 mm | 55"
1.8
Table width 1800 mm | 70"
2.2
Table width 2200 mm | 87"
Cutting tool
Toothed band knife Smooth band knife
Table cutting area (HDS 1.4)
2200 x 1400 x 650 mm | 87" x 55" x 25"
Table cutting area (HDS 1.8)
2200 x 1800 x 650 mm | 87" x 70" x 25"
Table cutting area (HDS 2.2)
2200 x 2200 x 650 mm | 87" x 87" x 25"
Cutting height
600 mm | 23"
See all technical data
Automatic pressure roller
Standard
Motorized, semi-automatic sharpener
Standard
Vacuum pumps
Standard
Automatic bow inclination
Standard
Manual blade tensioning
Standard
See all technical data
Take-away conveyor system
Optional
Stacker
Optional
Destacker
Optional
Conveyorized table
Optional
Loading conveyor
Optional
See all technical data
Lenght
1200 mm | 47”
Width
1500 mm | 59” | 2200 mm | 86”
Height
600 mm | 23”
PLC programmed by Fema
Standard
Layout
