Giotto HCS

back to product

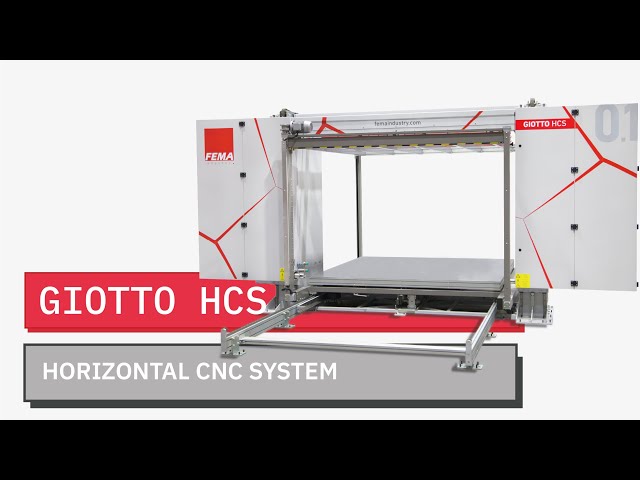

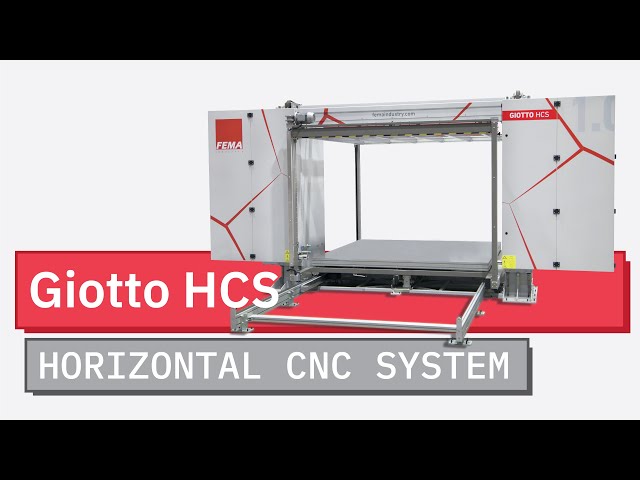

GIOTTO HCS is Fema Industry’s most experienced CNC machine, and it’s available in three models. With its solid and reliable structure, along with a fully mobile frame, it ensures the perfect combination of quality and speed on all densities and sizes. As all our CNCs, the system is controlled by the LF-2000 software, and by the newest LF-2 nesting utility.

require an offer

Application

Bedding
Bedding
Automotive
Automotive
Medical
Medical
Packaging
Packaging
Houseware
Houseware
Furniture
Furniture
Soundproofing
Soundproofing
Insulation
Insulation
Preparation
Preparation
Sofa
Sofa
Upholstered Furniture
Upholstered Furniture
Multi Purpose
Multi Purpose

Datasheet

0.1
Oscillating band knife system
1.0
Circulating band knife system
1.1
Circulating/oscillating band knife system
Cutting tool
Toothed band knife
Table cutting area
2200x2200 mm | 87 x 87" 3000 mm | 118" (optionals)
Cutting height
1300 mm | 51"
Cutting speed max
20 m/min | 788 ft/min
Material
PU flexible foam, HR foam,CMHR foam, latex, visco-elastic foam, lightweight rebond foam, melamine, Basotect®, EVA, PE, reticulated foam.
See all technical data
Manual turning table
Standard
Semiautomatic hold-down device
Standard
Air blowing system for blade cleaning and cooling (1.0 / 1.1)
Standard
Blade tensioning system,manual
Standard
Loading conveyor
Optional
Unloading conveyor
Optional
Oscillating system
Optional
Loading table w/ size detection system
Optional
Automatic conveyorized table
Optional
See all technical data
LF2000
Standard
LF2 NESTING
Optional
NEXUM
Optional
Layout
More info

Related Tools

Contour knife

Circulating band knife, toothed on one side, sharpened on one side
