Convoluter

back to product

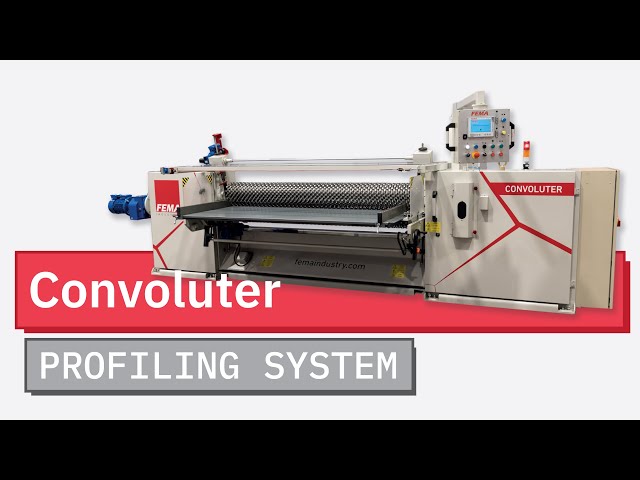

CONVOLUTER is a profiling machine which uses geometric distortion to shape a PU foam slab into two convoluted sheets. This pyramid-like shape can be customized in height and pressure with simple programming. Profiling shape can be customized too by changing rollers.

require an offer

Application

Bedding
Bedding
Medical
Medical
Packaging
Packaging
Houseware
Houseware
Furniture
Furniture
Soundproofing
Soundproofing
Insulation
Insulation
Multi Purpose
Multi Purpose

Datasheet

Standard
Profiling w/ standard rollers
5Z
Profiling w/ 5 zones rollers
7Z
Profiling w/ 7 zones rollers
Cutting tool
Smooth band knife
Table cutting area
50 (peak to peak) x 200 mm | 2"x 87" (standard) 40 mm | 1,5" - 42 | 1,6" peak to peak (optional)
Cutting height
150 mm | 6"
Cutting speed max
15 m/min | 50 in/min
Material
PU flexible foam, HR foam,CMHR foam, latex, visco-elastic foam, rebond foam, Basotect®
See all technical data
Cutting thickness 30 – 150 mm | 2” - 6”
Serial
Semi automatic sharpening system with vacuum
Serial
Manual tensioning system
Serial
Adjustable loading table
Serial
Winding/Unwinding system
Optional
Loading rollers
Optional
Unloading rollers
Optional
PLC programmed by Fema
Standard
NEXUM
Optional
Layout
