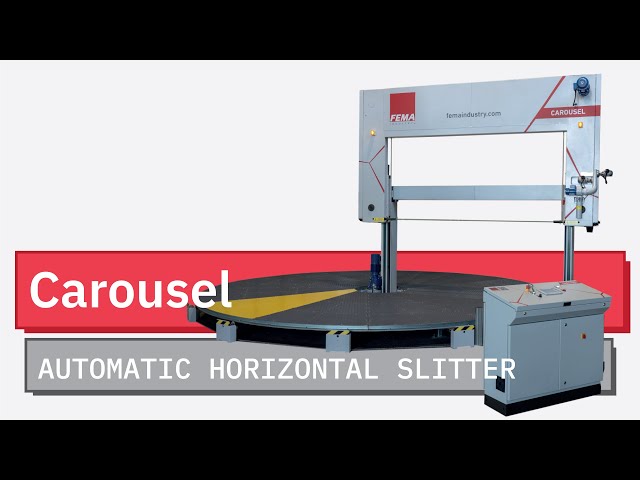

CAROUSEL is an automatic horizontal slitter with a rotating table. It can cut sheets of any thickness quickly and automatically. The table features a vacuum system and a special coating for maximum grip even at the highest rotation speed, and each cutting cycle can be fully programmed. Depending on their dimensions, it can cut up to 9 blocks in a single cycle.

require an offer

Application

Bedding

Medical

Packaging

Houseware

Cleaning

Construction

Insulation

Preparation

Multi Purpose

Datasheet

Models
Technical data
Serial features
Optional features

6.4

Table diameter 6400 mm

7.5

Table diameter 7500 mm

Cutting tool

Smooth bandknife

Table diameter (mm)

6400 / 7500

Cutting height (mm)

1300

Cutting speed max (m/min)

100

Material

PU flexible foam, HR foam,CMHR foam, latex, visco-elastic foam, lightweight rebond foam, melamine, Basotect®, EVA, PE

See all technical data

Manual sharpening system, motorized with dust vacuum

Serial

Tilting blade guide, automatic

Serial

Table vacuum system, 3 pumps

Serial

High-friction surface table

Serial

Air blowing system for blade cleaning

Serial

See all technical data

Conveyorized load/unload stations on table, 3

Optional

Loading conveyor

Optional

Unloading conveyor

Optional

Hold-down roller

Optional

Air blowing system for loading/unloading, 3 pumps

Optional

See all technical data
