AVT

back to product

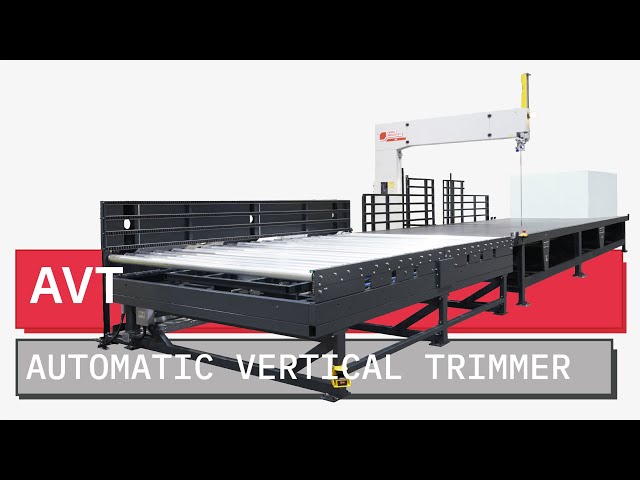

The AVT vertical cutter is an automatic system for trimming and cleaning PU blocks. It’s equipped with rotating cutting heads, and serial conveyors. Extremely accurate and fast, it’s capable of cutting a block perimeter according to the set dimensions, and it’s the ideal starting point for any automatic production line.

require an offer

Application

Bedding

Automotive

Packaging

Houseware

Furniture

Cleaning

Insulation

Preparation

Sofa

Upholstered Furniture

Multi Purpose

Datasheet

Technical data
Serial features
Optional features

Cutting tool

Smooth/toothed/set bandknife

Table cutting area (mm)

2200x2200

Cutting height (mm)

1200

Cutting speed max (m/min)

30

Material

PU flexible foam, PU rigid foam, HR foam,CMHR foam, latex, visco-elastic foam, rebond foam, melamine, Basotect®, EVA, PE , PIR, reticulated foam, felt, non-woven material, cotton wool, honeycomb, cellular rubber, laminated material, fabrics, rock wool and glass wool, bubble wrap, cardboard.

See all technical data

Semi-automatic sharpening system, motorized with dust vacuum

Serial

Adjustable blade guide

Serial

High-friction conveyorized tables

Serial

HMI Touchscreen 7"

Serial

Blade tensioning system, pneumatic

Serial

See all technical data

Oil vaporization system on the blade

Optional

Air blowing system for blade cleaning and residue removal

Optional

Centering table

Optional

Motorized fences with idle rollers system

Optional

Loading conveyor

Optional

See all technical data
