AVT-H

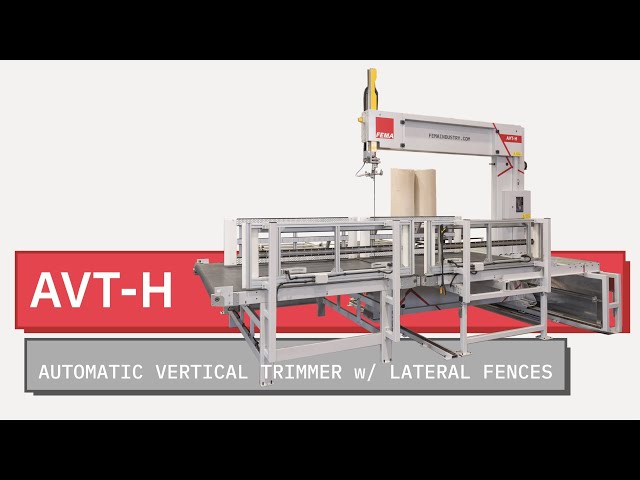

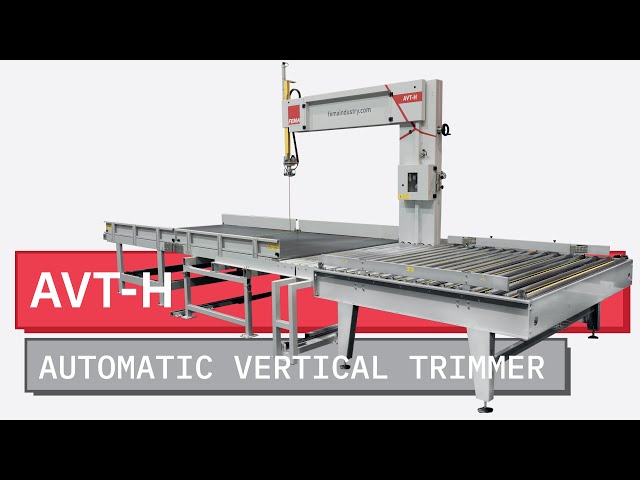

AVT-H is a vertical trimming system specifically designed for mattresses and for cleaning blocks. Its structure is equipped with serial conveyors and rollers for a direct application in a process line. It’s perfectly suitable for the last production passage in a bedding plant, right before packaging.

require an offer

Application

Bedding
Bedding
Packaging
Packaging
Insulation
Insulation
Preparation
Preparation
Sofa
Sofa
Multi Purpose
Multi Purpose

Datasheet

AVT-H
Cutting height 1200 mm | 47,2"
AVT- L
Cutting height 600 mm | 24"
Cutting tool
Smooth/toothed band knife
Table cutting area
2200 x 2200 mm | 87 x 87" (sx/standard) 3000 x 2200 mm | 118" x 87" (sx/optional) 3000 mm | 118" (width sx/optional) 2200 x 2200 mm | 87 x 87" (dx/standard)
Cutting height
1200 mm | 48" (AVT-H) 600 mm | 24" (AVT-L)
Cutting speed max
16 m/min | 99 ft/min
Material
PU flexible foam, PU rigid foam, HR foam,CMHR foam, latex, visco-elastic foam, rebond foam, melamine, Basotect®, EVA, PE , PIR, reticulated foam, felt, non-woven material, cotton wool, honeycomb, cellular rubber, laminated material, fabrics, rock wool and glass wool, bubble wrap, cardboard.
Automatic sharpening system
Standard
Tensioning system, manual
Standard
Rotating cutting head 0° - 90°
Standard
Lateral fences with rollers 1 fixed,1 motorized
Optional
Centering conveyor
Optional
Automatic cleaning system w/ silicon spray
Optional
Loading conveyor
Optional
Unloading conveyor
Optional
PLC programmed by FEMA
Standard
NEXUM
Optional
